EMISSION SYSTEM STRUCTURAL VIEW[LF, L3]

id0116c2100200

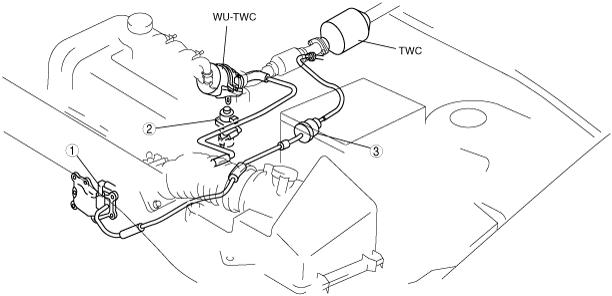

Engine Compartment Side

am3zzn00000405

1	PCV valve
2	EGR valve
3	Purge solenoid valve

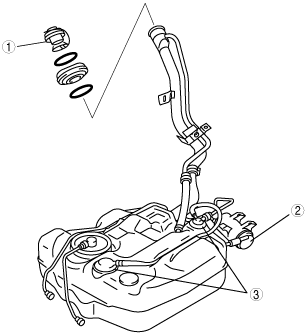

Fuel Tank Side

am3zzn00000406

1	Fuel-filler cap
2	Charcoal canister
3	Rollover valve
