EMISSION SYSTEM STRUCTURAL VIEW[MZ-CD 1.6 (Y6)]
id0116c3100200

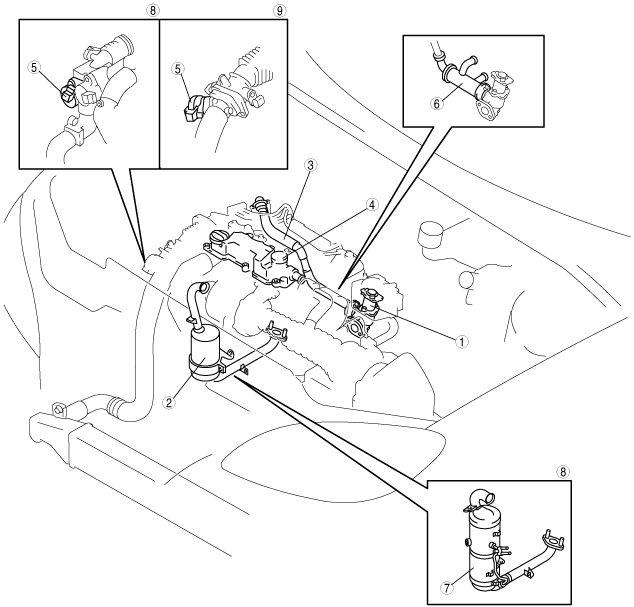

Engine Compartment Side
am3zzn00000559
|
|
1
|
EGR valve
|
|
2
|
Oxidation catalytic converter
|
|
3
|
EGR valve pipe
|
|
4
|
PCV valve (With-in upper cylinder head cover)
|
|
5
|
Intake throttle valve
|
|
6
|
EGR water cooler
|
|
7
|
Oxidation catalytic converter (built-in diesel particulate filter)
|
|
8
|
High power-Euro 4
|
|
9
|
Standard power-Euro 4
|

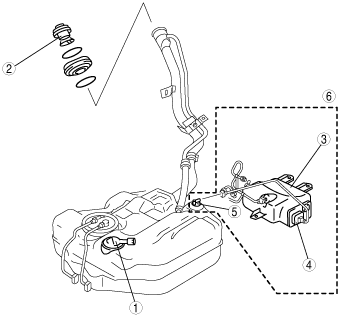

Fuel Tank Side
am3zzn00000560
|
|
1
|
Rollover valve
|
|
2
|
Fuel cap
|
|
3
|
Fuel additive tank
|
|
4
|
Fuel additive pump unit
|
|
5
|
Injector
|
|
6
|
High power-Euro 4
|
