EMISSION SYSTEM LOCATION INDEX[MZ-CD 1.6 (Y6)]

id0116c3803700

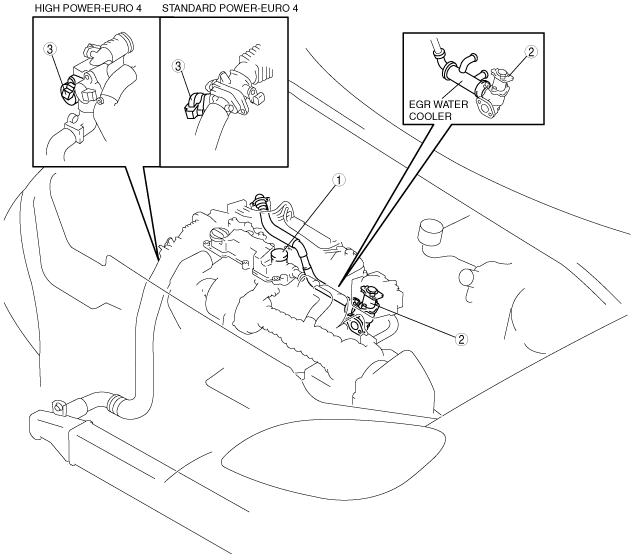

Engine Compartment Side

am3zzw00001523

1	Positive crankcase ventilation (PCV) valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION[MZ-CD 1.6 (Y6)].)
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See EGR VALVE INSPECTION[MZ-CD 1.6 (Y6)]
3	Intake throttle valve (See INTAKE THROTTLE VALVE INSPECTION[MZ-CD 1.6 (Y6)].)

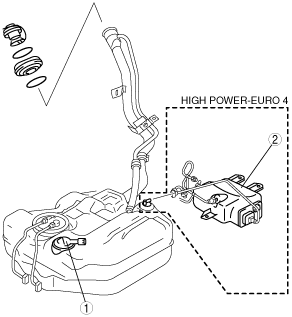

Fuel Tank Side

am3zzw00001524

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See ROLLOVER VALVE INSPECTION[MZ-CD 1.6 (Y6)].)
2	Fuel additive tank (High power-Euro 4) (See FUEL ADDITIVE TANK REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See FUEL ADDITIVE FILLING[MZ-CD 1.6 (Y6)].)
