EMISSION SYSTEM STRUCTURAL VIEW [MZR-CD (RF Turbo)]

id0116f1100200

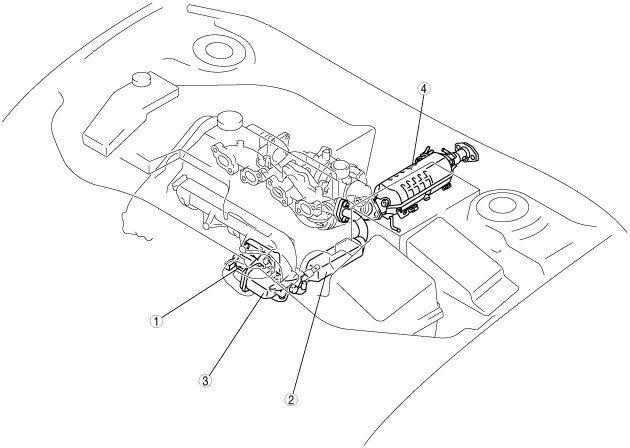

Engine Compartment Side

am3zzn00001624

1	EGR valve
2	EGR cooler
3	Intake shutter valve
4	Oxidation catalytic converter (built- in diesel particulate filter)

Fuel Tank Side

am3zzn00001675

1	Rollover valve
