EMISSION SYSTEM LOCATION INDEX [MZR-CD (RF Turbo)]

id0116f1803700

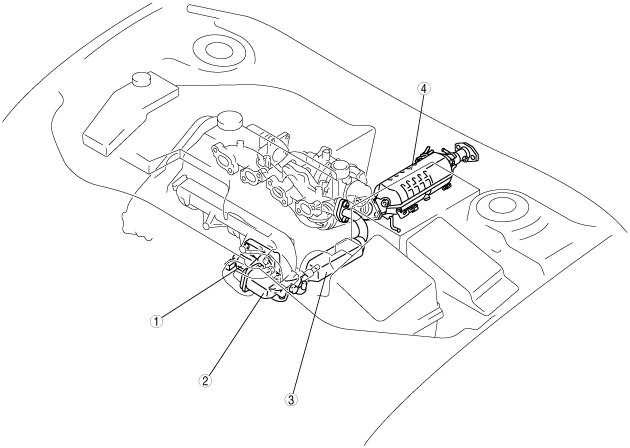

Engine Compartment Side

am3zzw00004147

1	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See EGR VALVE INSPECTION [MZR-CD (RF Turbo)].)
2	Intake shutter valve (See INTAKE SHUTTER VALVE INSPECTION [MZR-CD (RF Turbo)].)
3	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
4	Oxidation catalytic converter (built-in diesel particulate filter) (See DIESEL PARTICULATE FILTER REGENERATION [MZR-CD (RF Turbo)].)

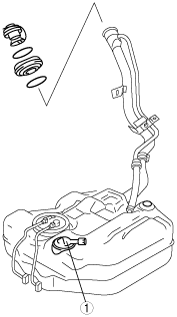

Fuel Tank Side

am3zzw00004276

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See ROLLOVER VALVE INSPECTION [MZR-CD (RF Turbo)].)
