GENERATOR DISASSEMBLY/ASSEMBLY[L3 Turbo]

id0117b2800400

Caution
•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

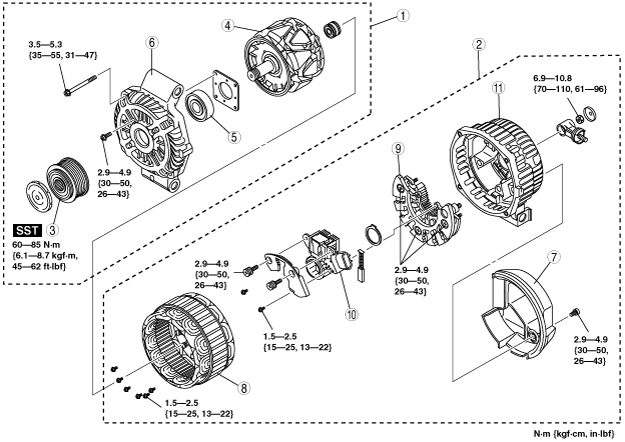

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

am3uuw00000309

1
Rotor component
2
Stator coil component
3
Pulley
(See Pulley Disassembly/Assembly Note.)
4
Rotor
5
Bearing
6
Front cover
7
Generator heat insulator
8
Stator coil
9
Rectifier
10
Brush holder
11
Rear bracket


Pulley Disassembly/Assembly Note

1.  Disassemble/assemble the pulley using the SST.

am3zzw00003129

Tightening torque
60—85 N·m {6.1—8.7 kgf·m, 45—62 ft·lbf}
