BATTERY CONSTRUCTION[LF, L3]

id0117c2129900

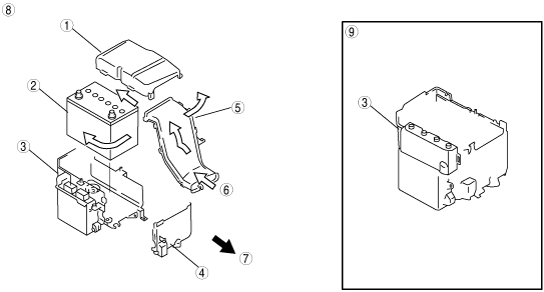

•  Air that passes through the battery duct when the vehicle is moving is used to cool the battery, preventing battery degradation from the heat made by chemical reaction, improving reliability.
am3zzn00000424

1
Battery cover
2
Battery
3
Battery tray
4
Battery box
5
Battery duct
6
Intake air
7
Front
8
Except for U.K. specs.
9
U.K. specs.
