GENERATOR DISASSEMBLY/ASSEMBLY[LF, L3]

id0117c2800400

Caution

•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

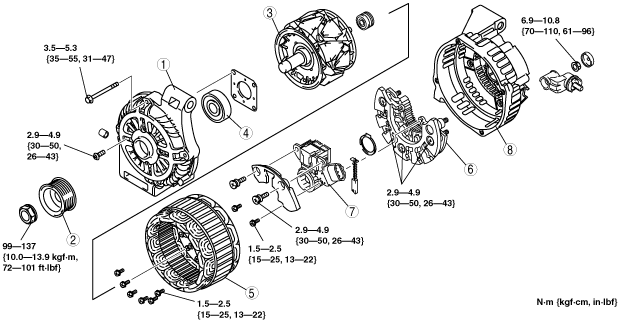

European (L.H.D. U.K.) specs.

am3zzw00000184

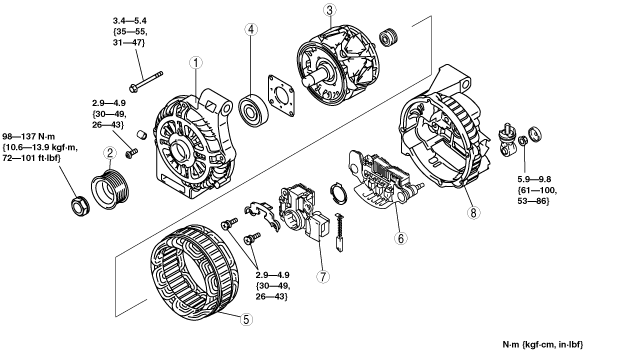

Except for European (L.H.D. U.K.) specs.

am3zzw00003225

1	Front cover
2	Pulley
3	Rotor
4	Bearing
5	Stator coil
6	Rectifier
7	Brush holder
8	Rear bracket
