GENERATOR CONSTRUCTION [MZ-CD 1.6 (Y6)]

id0117c3102300

•  With the elimination of the voltage regulator, generator control is carried out by the PCM. Excitation current in the field coil is increased or decreased by the duty signal from the PCM sent to the power transistor built into the generator.
•  The generator is equipped with a double stator coil and discharges high voltage.

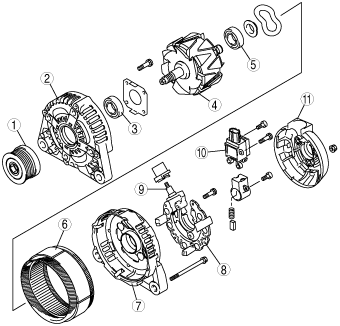

am3zzn00000657

1
Pulley
2
Front cover
3
Front bearing
4
Rotor
5
Rear bearing
6
Stator
7
Center cover
8
Rectifier
9
Terminal B
10
Regulator
11
Rear cover

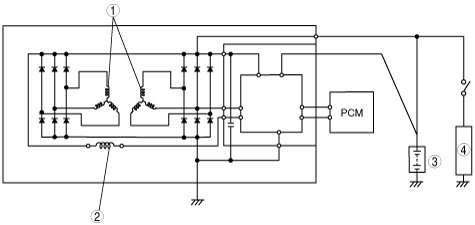

am3zzn00000658

1
Stator coil
2
Rotor
3
Battery
4
Load
