GENERATOR CONSTRUCTION [MZR-CD (RF Turbo)]

id0117f1102300

•  With the elimination of the voltage regulator, generator control is carried out by the PCM. Exciting current in the field coil is increased or decreased by the duty signal from the PCM sent to the power transistor built into the generator.

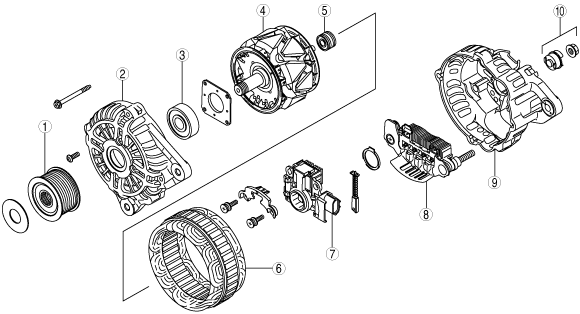

am3zzn00001523

1
Pulley
2
Front cover
3
Front bearing
4
Rotor
5
Rear bearing
6
Stator coil
7
Regulator component (built-in power transistor)
8
Rectifier
9
Rear cover
10
Terminal B component

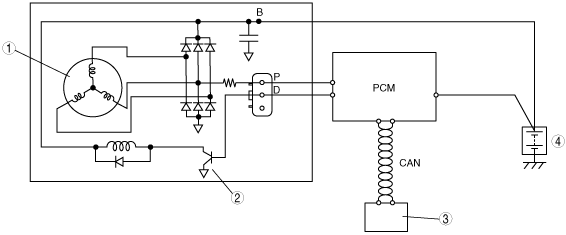

am3zzn00001700

1
Stator coil
2
Power transistor
3
Instrument cluster (warning light)
4
Battery
