GENERATOR DISASSEMBLY/ASSEMBLY [MZR-CD (RF Turbo)]

id0117f1800400

Caution
•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

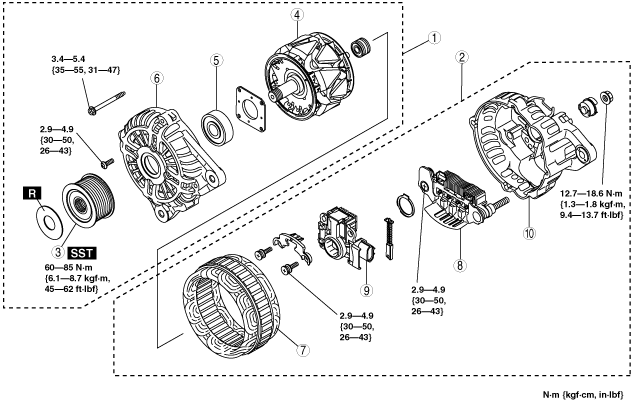

am3zzw00004449

1
Rotor component
2
Stator coil component
3
Pulley
(See Pulley Disassembly/Assembly Note.)
4
Rotor
5
Front bearing
6
Front cover
7
Stator coil
8
Rectifier
9
Brush holder
10
Rear cover


Pulley Disassembly/Assembly Note

1.  Bore a hole in the generator bearing cover with a flathead screwdriver as shown in the figure and remove the generator bearing cover.

am5ezw00002409

2.  Disassemble/assemble the pulley using the SST.

am3zzw00004450

Tightening torque
60—85 N·m {6.1—8.7 kgf·m, 45—62 ft·lbf}
