IGNITION COIL CONSTRUCTION/OPERATION[ZJ, ZY, Z6]

id0118b1100300


Construction

•  Direct ignition coils installed directly to each spark plug have been adopted. By adopting direct ignition coils, high-tension leads have been eliminated in order to simplify the parts of the ignition system, and also to prevent voltage reduction and improve the firing efficiency.
•  Independent firing control has been adopted to eliminate firing without spark, increasing firing energy.
•  The direct ignition coil consists of an ignition coil, ignition coil connector, and boot area, which has the same function as the current high-tension lead.

Operation

•  The firing timing of the coil is controlled by the PCM by means of a built-in igniter for optimum ignition timing control.

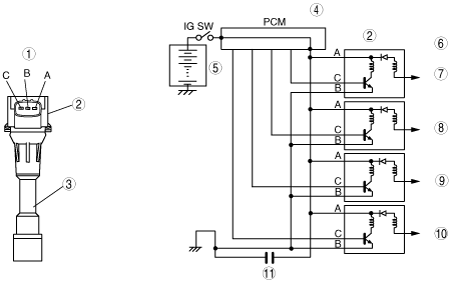

b3e0118t101

1
Ignition coil external view
2
Ignition coil
3
Boot
4
Ignition coil electrical system wiring diagram
5
Battery
6
Cylinder number
7
No. 4
8
No. 3
9
No. 2
10
No. 1
11
Condenser

Terminal layout

Terminal

Signal
Three terminals
A
Power supply
B
Ground
C
Ignition coil control signal
