SPARK PLUG CONSTRUCTION[LF, L3]


id0118b2100400

•  An iridium spark plug with excellent durability and firing performance has been adopted.
•  The extremely thin, center electrode has a diameter of 0.6 mm {0.024 in} and is made of iridium alloy.
•  Durability has been improved by the use of a platinum-tipped grounding electrode.
•  Based on the thinner electrode (center electrode), electric discharge has been reduced and ignition has been improved, resulting in stable ignition performance under any driving conditions.

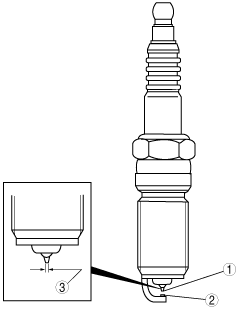

am3zzn00000222

1
Iridium alloy
2
Platinum-tip
3
Center electrode
