IGNITION COIL REMOVAL/INSTALLATION[LF, L3]

id0118b2800200

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

2.  Disconnect the negative battery cable.

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION[LF, L3].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

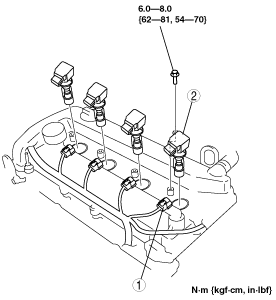

am3zzw00000186

1	Connector
2	Ignition coil
