IGNITION COIL CONSTRUCTION/OPERATION[L3 Turbo]

id0118b3100300


Construction

•  Direct ignition coils installed directly to each spark plug have been adopted. By adopting direct ignition coils, high-tension leads have been eliminated in order to simplify the parts of the ignition system, preventing voltage reduction, and improving the firing efficiency.
•  Independent firing control has been adopted to eliminate firing without spark, increasing firing energy.
•  The direct ignition coil consists of an ignition coil, ignition coil connector, and boot area.
•  The igniter has been integrated into each ignition coil.

Operation

•  The firing timing of the coil is controlled by the PCM for optimum ignition timing control.

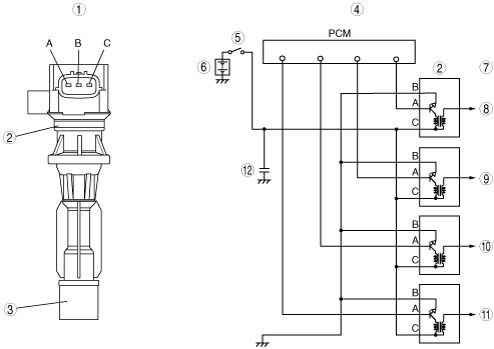

am3zzn00001202

1
Ignition coil external view
2
Ignition coil
3
Boot
4
Ignition coil electrical system wiring diagram
5
Ignition switch
6
Battery
7
Cylinder number
8
No. 1
9
No. 2
10
No. 3
11
No. 4
12
Condenser

Terminal layout

Terminal

Signal
Three terminals
A
Ignition coil control signal
B
Ground
C
Power supply
