STARTER DISASSEMBLY/ASSEMBLY[LF, L3]


id0119b2800400

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

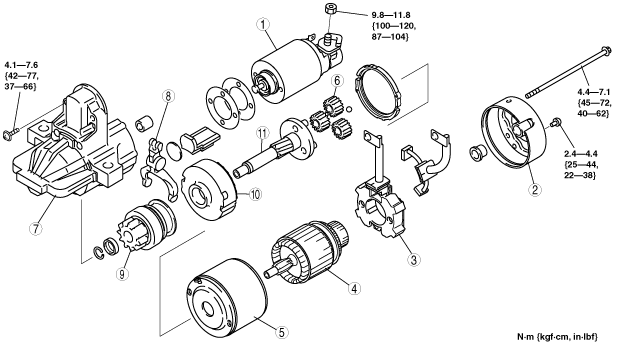

am3zzw00000202

1
Magnetic switch
2
Rear housing
3
Brush and brush holder
4
Armature
5
Yoke
6
Planetary gear
7
Front cover
8
Lever
9
Drive pinion
10
Internal gear
11
Gear shaft
