STARTER DISASSEMBLY/ASSEMBLY [MZR-CD (RF Turbo)]

id0119f1800400

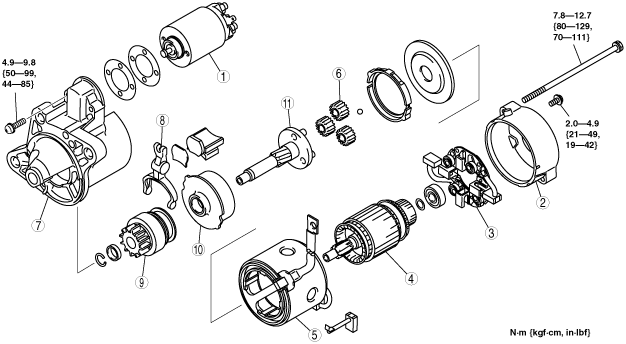

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

am3zzw00003904

1

Magnetic switch

2

Rear housing

3

Brush and brush holder

4

Armature

5

Yoke

6

Planetary gear

7

Front cover

8

Lever

9

Drive pinion

10

Internal gear

11

Gear shaft

1	Magnetic switch
2	Rear housing
3	Brush and brush holder
4	Armature
5	Yoke
6	Planetary gear
7	Front cover
8	Lever
9	Drive pinion
10	Internal gear
11	Gear shaft
