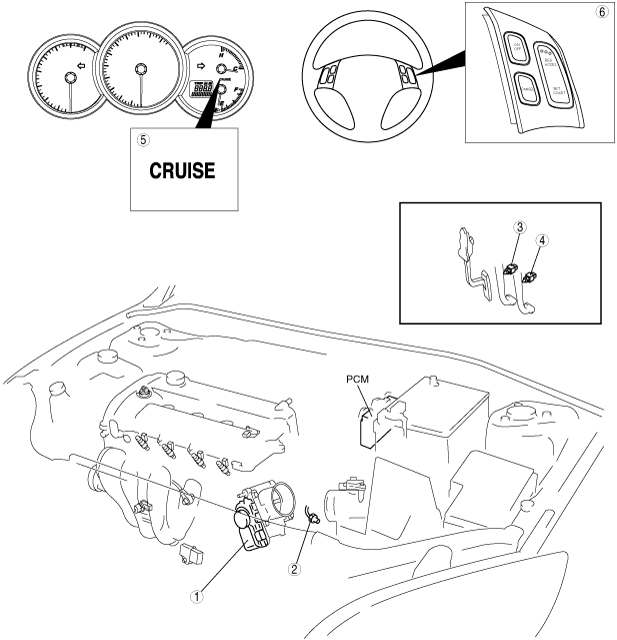

CRUISE CONTROL SYSTEM STRUCTURAL VIEW[LF, L3]
id0120b2100200
am3zzn00000888
|
|
1
|
Throttle actuator
|
|
2
|
Neutral switch (MTX)
|
|
3
|
Brake switch
|
|
4
|
CPP switch (MTX)
|
|
5
|
Cruise set indicator light (amber)/cruise main indicator light (green)
|
|
6
|
Cruise control switch
|
