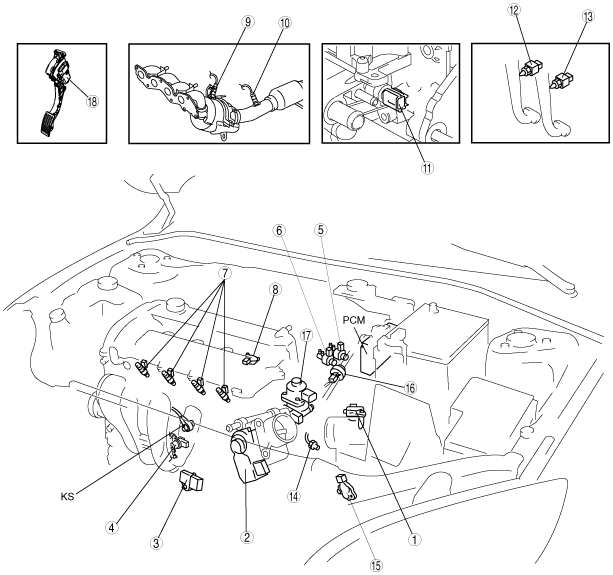

ENGINE CONTROL SYSTEM STRUCTURAL VIEW [LF, L3]
id0140a9100200
am3zzn00001730
|
|
1
|
MAF/IAT sensor
|
|
2
|
TP sensor
|
|
3
|
MAP sensor
|
|
4
|
CKP sensor
|
|
5
|
Variable tumble solenoid valve
|
|
6
|
Variable intake air solenoid valve
|
|
7
|
Fuel injector
|
|
8
|
CMP sensor
|
|
9
|
A/F sensor
|
|
10
|
HO2S
|
|
11
|
ECT sensor
|
|
12
|
Brake switch
|
|
13
|
CPP switch (MTX)
|
|
14
|
Neutral switch (MTX)
|
|
15
|
TR switch (ATX)
|
|
16
|
Purge solenoid valve
|
|
17
|
EGR valve
|
|
18
|
APP sensor
|
