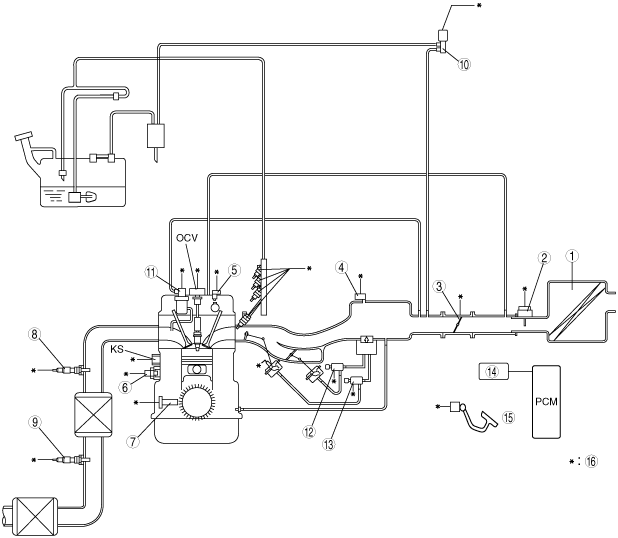

ENGINE CONTROL SYSTEM DIAGRAM [LF, L3]
id0140a9100300
am3zzn00000913
|
|
1
|
Air cleaner
|
|
2
|
MAF/IAT sensor
|
|
3
|
TP sensor
|
|
4
|
MAP sensor
|
|
5
|
CMP sensor
|
|
6
|
ECT sensor
|
|
7
|
CKP sensor
|
|
8
|
A/F sensor
|
|
9
|
HO2S
|
|
10
|
Purge solenoid valve
|
|
11
|
EGR valve
|
|
12
|
Variable intake air solenoid valve
|
|
13
|
Variable tumble solenoid valve
|
|
14
|
Generator
|
|
15
|
APP sensor
|
|
16
|
To PCM
|
