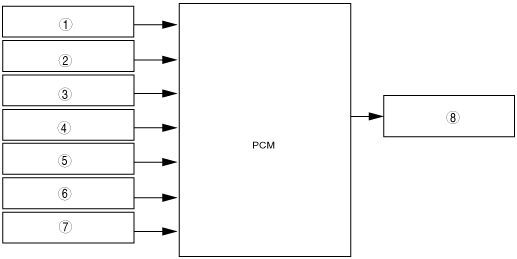

A/C CUT-OFF CONTROL BLOCK DIAGRAM[LF, L3]
id0140a9103600
am3zzn00000923
|
|
1
|
TP sensor
|
|
2
|
ECT sensor
|
|
3
|
CKP sensor
|
|
4
|
Neutral switch (MTX)
|
|
5
|
CPP switch (MTX)
|
|
6
|
TR switch (ATX)
|
|
7
|
A/C on request signal
|
|
8
|
A/C relay
|
