•  Installed on the water bypass tube (directly below the ignition coil).

•  The ECT is a thermistor type, the resistance changes according to the engine coolant temperature.

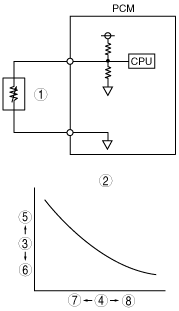

am3zzn00000995

1	ECT sensor
2	ECT sensor resistance characteristic
3	Resistance
4	Engine coolant temperature
5	Large
6	Small
7	Low
8	High

•  The resistance decreases if the engine coolant temperature increases, and increases if the engine coolant temperature decreases.
