CLUTCH PEDAL POSITION (CPP) SWITCH CONSTRUCTION/OPERATION[LF, L3]

• When the clutch pedal is depressed, the contact closes (ON) and the PCM detects a voltage of 0 V. When the clutch pedal is not depressed, the contact opens (OFF) the PCM detects a voltage of 12 V.

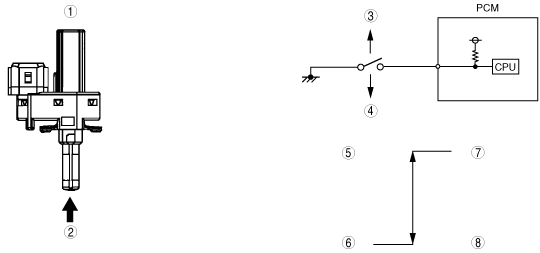

am3zzn00000993

1

CPP switch

2

Push OFF

3

Clutch pedal not depressed (OFF)

4

Clutch pedal depressed (ON)

5

Clutch pedal depressed (ON)

6

Clutch pedal not depressed (OFF)

7

No load

8

Load

1	CPP switch
2	Push OFF
3	Clutch pedal not depressed (OFF)
4	Clutch pedal depressed (ON)
5	Clutch pedal depressed (ON)
6	Clutch pedal not depressed (OFF)
7	No load
8	Load
