AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [LF, L3]

id0140a9899900

Warning

• A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1. Remove the battery cover.

2. Disconnect the negative battery cable.

4. Disconnect the A/F sensor connector.

5. Disconnect the HO2S connector.

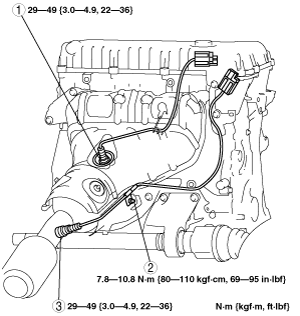

6. Remove in the order indicated in the table.

am3zzw00004629

A/F sensor, HO2S Removal Note

1. Remove the A/F sensor, HO2S using the SST.

am3zzw00004630

Wiring Harness Bracket Installation Note

Note

• There might be no pin. If there is no pin, lock the wiring harness bracket against rotation and tighten the nut.

am3zzw00004631

1	A/F sensor (See A/F sensor, HO2S Removal Note.)
2	Wiring harness bracket (See Wiring Harness Bracket Installation Note.)
3	HO2S (See A/F sensor, HO2S Removal Note.)
