ENGINE CONTROL SYSTEM STRUCTURAL VIEW[ZJ, ZY, Z6]
id0140b1100200

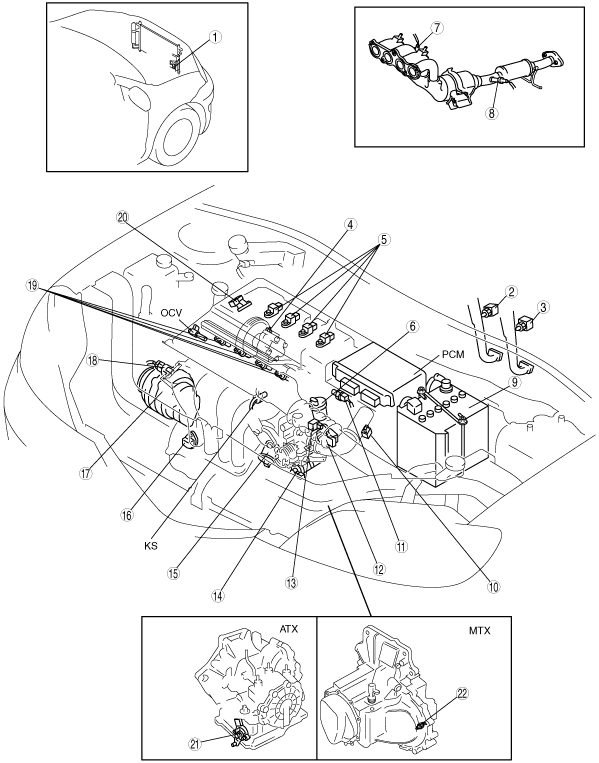

Without Throttle Valve Actuator
am3zzn00000970
|
|
1
|
Refrigerant pressure switch (low pressure, high pressure) (medium pressure)
|
|
2
|
Brake switch
|
|
3
|
CPP switch (MTX)
|
|
4
|
PSP switch
|
|
5
|
Ignition coil
|
|
6
|
Variable tumble shutter valve actuator
|
|
7
|
Front HO2S
|
|
8
|
Rear HO2S
|
|
9
|
Battery
|
|
10
|
MAF/IAT sensor
|
|
11
|
ECT sensor
|
|
12
|
TP sensor
|
|
13
|
Purge solenoid valve
|
|
14
|
IAC valve
|
|
15
|
Variable intake air shutter valve actuator (With variable intake air system)
|
|
16
|
CKP sensor
|
|
17
|
Generator
|
|
18
|
BARO sensor (If equipped)
|
|
19
|
Fuel injector
|
|
20
|
CMP sensor
|
|
21
|
TR switch (ATX)
|
|
22
|
Neutral switch (MTX)
|

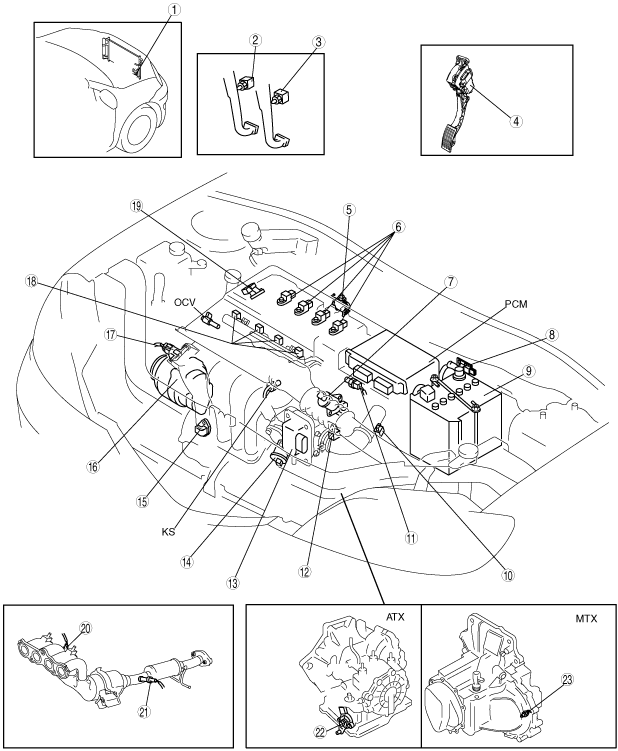

With Throttle Valve Actuator
am3zzn00001316
|
|
1
|
Refrigerant pressure switch (low pressure, high pressure) (medium pressure)
|
|
2
|
Brake switch
|
|
3
|
CPP switch (MTX)
|
|
4
|
APP sensor
|
|
5
|
EGR valve
|
|
6
|
Ignition coil
|
|
7
|
Variable tumble shutter valve actuator
|
|
8
|
Current sensor
|
|
9
|
Battery
|
|
10
|
MAF/IAT sensor
|
|
11
|
ECT sensor
|
|
12
|
Purge solenoid valve
|
|
13
|
TP sensor
|
|
14
|
Variable intake air shutter valve actuator
|
|
15
|
CKP sensor
|
|
16
|
Generator
|
|
17
|
MAP sensor
|
|
18
|
Fuel injector
|
|
19
|
CMP sensor
|
|
20
|
Front HO2S
|
|
21
|
Rear HO2S
|
|
22
|
TR switch (ATX)
|
|
23
|
Neutral switch (MTX)
|
