ENGINE CONTROL SYSTEM BLOCK DIAGRAM[ZJ, ZY, Z6]
id0140b1100500
Without Throttle Valve Actuator
am3zzn00001385
|
|
1
|
Neutral switch (MTX)
|
|
2
|
CPP switch (MTX)
|
|
3
|
PSP switch
|
|
4
|
ECT sensor
|
|
5
|
IAT sensor
|
|
6
|
PCM temperature sensor
|
|
7
|
CKP sensor
|
|
8
|
CMP sensor
|
|
9
|
TP sensor
|
|
10
|
MAF sensor
|
|
11
|
Front HO2S
|
|
12
|
Rear HO2S
|
|
13
|
Ignition switch
|
|
14
|
Vehicle speed signal
|
|
15
|
TR switch (ATX)
|
|
16
|
Brake switch
|
|
17
|
A/C on request signal
|
|
18
|
Refrigerant pressure switch (low pressure switch, high pressure switch)
|
|
19
|
Refrigerant pressure switch (medium pressure switch)
|
|
20
|
Generator (Terminal P: stator coil)
|
|
21
|
Battery
|
|
22
|
CAN related module
|
|
23
|
Variable intake air control (With variable intake air system)
|
|
24
|
Variable tumble control
|
|
25
|
Variable valve timing control
|
|
26
|
Fuel injection control
|
|
27
|
Fuel pump control
|
|
28
|
ESA control
|
|
29
|
Evaporative purge control
|
|
30
|
HO2S heater control
|
|
31
|
A/C cut-off control
|
|
32
|
Electrical fan control
|
|
33
|
Starter cut-off control (With immobilizer system)
|
|
34
|
Generator control
|
|
35
|
IAC valve
|
|
36
|
Variable intake air shutter valve actuator (With variable intake air system)
|
|
37
|
Variable tumble shutter valve actuator
|
|
38
|
Fuel injector
|
|
39
|
Fuel pump relay
|
|
40
|
Ignition coil
|
|
41
|
Purge solenoid valve
|
|
42
|
Front HO2S heater
|
|
43
|
Rear HO2S heater
|
|
44
|
A/C relay
|
|
45
|
Fan control module
|
|
46
|
Generator (Terminal D: field coil)
|
|
47
|
CAN related module
|
|
48
|
BARO sensor (If equipped)
|
|
49
|
VSS (Without ABS or DSC)
|
|
50
|
Starter relay (With immobilizer system)
|

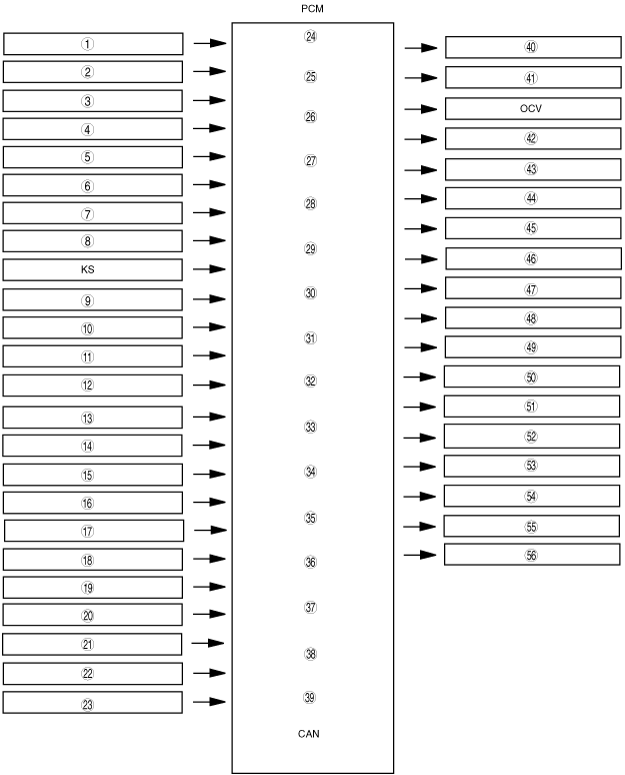

With Throttle Valve Actuator
am3zzn00000334
|
|
1
|
IAT sensor
|
|
2
|
MAF sensor
|
|
3
|
TP sensor
|
|
4
|
APP sensor
|
|
5
|
MAP sensor
|
|
6
|
ECT sensor
|
|
7
|
CMP sensor
|
|
8
|
CKP sensor
|
|
9
|
Front HO2S
|
|
10
|
Rear HO2S
|
|
11
|
Neutral switch (MTX)
|
|
12
|
CPP switch (MTX)
|
|
13
|
TR switch (ATX)
|
|
14
|
Brake switch
|
|
15
|
A/C on request signal
|
|
16
|
Refrigerant pressure switch (low pressure switch, high pressure switch)
|
|
17
|
Refrigerant pressure switch (medium pressure switch)
|
|
18
|
Battery
|
|
19
|
Generator (Terminal P: stator coil)
|
|
20
|
Vehicle speed signal
|
|
21
|
CAN related module
|
|
22
|
Immobilizer system related module
|
|
23
|
Ignition switch
|
|
24
|
Main relay control
|
|
25
|
Drive-by-wire control
|
|
26
|
Drive-by-wire relay control
|
|
27
|
Variable intake air control
|
|
28
|
Variable tumble control
|
|
29
|
Variable valve timing control
|
|
30
|
Fuel injection control
|
|
31
|
Fuel pump control
|
|
32
|
ESA control
|
|
33
|
EGR control
|
|
34
|
Evaporative purge control
|
|
35
|
HO2S heater control
|
|
36
|
A/C cut-off control
|
|
37
|
Starter cut-off control (With immobilizer system)
|
|
38
|
Electrical fan control
|
|
39
|
Generator control
|
|
40
|
Main relay
|
|
41
|
Drive-by-wire relay
|
|
42
|
Throttle valve actuator
|
|
43
|
Variable intake air shutter valve actuator
|
|
44
|
Variable tumble shutter valve actuator
|
|
45
|
Fuel injector
|
|
46
|
Fuel pump relay
|
|
47
|
Ignition coil
|
|
48
|
EGR valve
|
|
49
|
Purge solenoid valve
|
|
50
|
Front HO2S heater
|
|
51
|
Rear HO2S heater
|
|
52
|
A/C relay
|
|
53
|
Starter relay
|
|
54
|
Fan control module
|
|
55
|
Generator (Terminal D: field coil)
|
|
56
|
CAN related module
|
