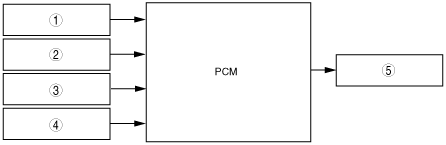

FUEL PUMP CONTROL BLOCK DIAGRAM[ZJ, ZY, Z6]

• The PCM determines the engine starting condition based on each input signal and controls the fuel pump relay on/off.

am3zzn00000356

1

CKP sensor

2

Engine stop request signal (Without throttle valve actuator)

2

CAN related module (With throttle valve actuator)

2

Ignition switch (Without throttle valve actuator)

3

Fuel pump relay

1	CKP sensor
2	Engine stop request signal (Without throttle valve actuator)
2	CAN related module (With throttle valve actuator)
2	Ignition switch (Without throttle valve actuator)
3	Fuel pump relay
