CAMSHAFT POSITION (CMP) SENSOR CONSTRUCTION/OPERATION[ZJ, ZY, Z6]

id0140b1105000

• The CMP sensor is installed at a 30° tilt to the cylinder head cover.

• The CMP sensor detects six pulses with one rotation of the camshaft by the projections set on the intake-side camshaft.

• A GMR element has been adopted.

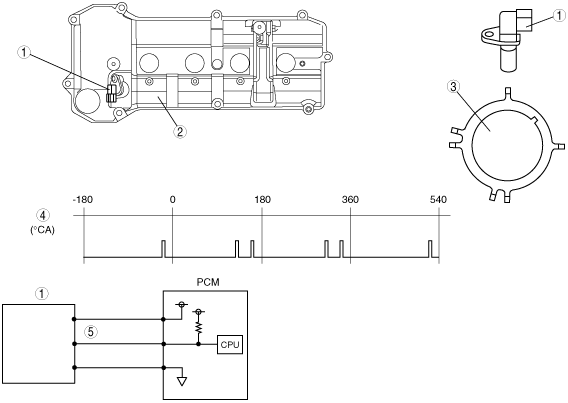

am3zzn00000384

1

CMP sensor

2

Cylinder head cover

3

Camshaft

4

Crank angle

5

Sensor output signal
