BAROMETRIC PRESSURE (BARO) SENSOR CONSTRUCTION/OPERATION[ZJ, ZY, Z6]

id0140b1172900


With BARO Sensor Only

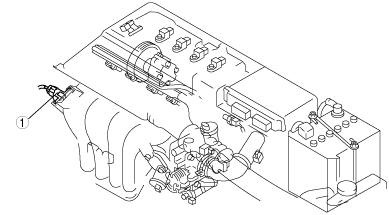

•  Installed on the intake manifold.
am3zzn00001348

1
BARO sensor

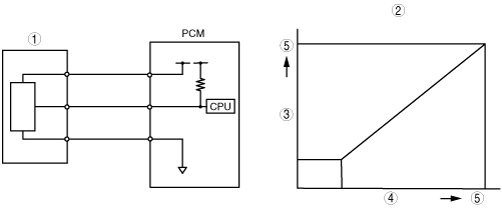

•  The piezoelectric element is enclosed in the sensor and the electric potential difference changes as the BARO drops. The output voltage lowers as the BARO drops.
am3zzn00001349

1
BARO sensor
2
BARO sensor voltage characteristic
3
Output voltage
4
Barometric pressure
5
High
