MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR CONSTRUCTION/OPERATION[ZJ, ZY, Z6]

id0140b1173100


With Throttle Valve Actuator Only

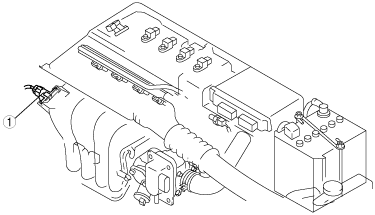

•  Installed on the intake manifold.
am3zzn00001354

1
MAP sensor

•  When pressure is applied to the piezoelectric element in the sensor, an electric potential difference occurs. Output voltage increases as the intake air pressure increases.
am3zzn00001349

1
MAP sensor
2
MAP sensor characteristic
3
Output voltage
4
Intake air pressure
5
High
