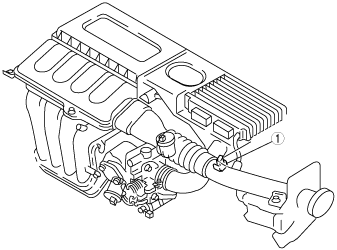

•  Installed on the air hose.

am3zzn00000379

1	MAF/IAT sensor

•  Built into the MAF sensor.

am3zzn00000380

1	MAF sensor
2	IAT sensor

•  A thermistor type is used and the resistance changes according to the IAT.

•  As shown in the characteristics graph, when the IAT is high, the resistance is low, and when the IAT is low, the resistance is high.

am3zzn00000381

1	IAT sensor
2	IAT sensor characteristic
3	Resistance (kilohm)
