NEUTRAL SWITCH CONSTRUCTION/OPERATION[ZJ, ZY, Z6]

id0140b1176900

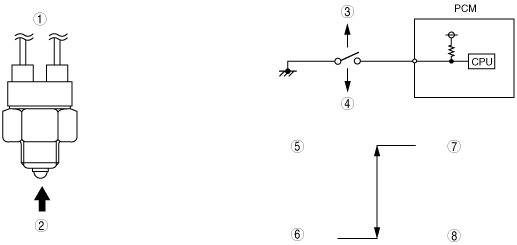

•  When the shift lever is in the neutral position, the contact closes (ON) and the PCM detects a voltage of 1.0 V or less. When the shift lever is not in the neutral position, the contact opens (OFF) and the PCM detects a voltage of B+.
am3zzn00000372

1
Neutral switch
2
Push ON
3
Other than neutral (OFF)
4
Neutral (ON)
5
Neutral (ON)
6
Except above
7
No load
8
Load
