•  Hall element type has been adopted for the current sensor.

•  Negative battery cable is inserted through the hole in the center of the current sensor and installed to the negative battery terminal.

•  Current sensor detects current flowing to the negative battery cable as the battery charge/discharge current.

•  Magnetic flux proportionate to the current flowing to the negative battery cable (measuring current) is generated on the magnetic circuit of the current sensor.The magnetic flux is passed through the hall element, and proportionate output voltage to the magnetic flux density is generated due to the Hall effect.

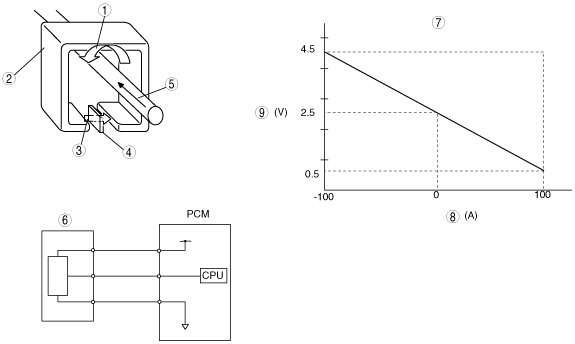

am3zzn00001362

1	Generated magnetic flux
2	Magnetic circuit (core)
3	Magnetic flux
4	Hall element
5	Measured current
6	Current sensor
7	Current sensor output characteristics
8	Current
9	Voltage
