CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION (MTX)[ZJ, ZY, Z6]

id0140b1803300

Note

• Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See HOW TO USE THIS MANUAL.)

Continuity Inspection

1. Remove the CPP switch.

2. Verify that the continuity between CPP switch terminals A and B is as indicated in the table.

• If not as indicated in the table, replace the CPP switch. (See CLUTCH PEDAL REMOVAL/INSTALLATION.)

• If the monitor item condition/specification (reference) is not within the specification, even though there is no malfunction, perform the “Circuit Open/Short Inspection”.

am3zzw00001275

Circuit Open/Short Inspection (Without Throttle Valve Actuator)

1. Remove the PCM connector cover.

2. Disconnect the PCM connector. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[ZJ, ZY, Z6].)

3. Inspect the following wiring harness for open or short circuit (continuity check).

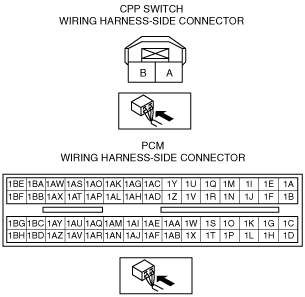

am3zzw00001276

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

― CPP switch terminal A and PCM terminal 1P

― CPP switch terminal B and body ground

Short circuit

• If there is continuity, there is a short circuit. Repair or replace the wiring harness.

― CPP switch terminal A and body ground

― CPP switch terminal B and power supply

Circuit Open/Short Inspection (With Throttle Valve Actuator)
