ENGINE CONTROL SYSTEM STRUCTURAL VIEW[MZ-CD 1.6 (Y6)]
id0140b2100200

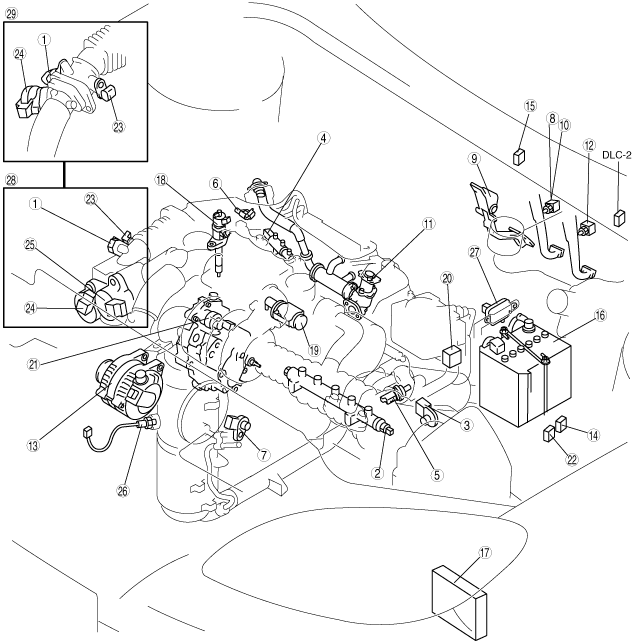

Engine Compartment Side
am3zzn00000565
|
|
1
|
MAP sensor
|
|
2
|
Fuel pressure sensor
|
|
3
|
Combined IAT sensor and MAF sensor
|
|
4
|
Fuel temperature sensor
|
|
5
|
ECT sensor
|
|
6
|
CMP sensor
|
|
7
|
CKP sensor
|
|
8
|
Brake switch
|
|
9
|
APP sensor
|
|
10
|
BPP switch
|
|
11
|
EGR valve position sensor
|
|
12
|
CPP switch
|
|
13
|
Generator (input signal)
|
|
14
|
Start relay
|
|
15
|
Engine switch
|
|
16
|
Battery
|
|
17
|
PCM (Built-in BARO sensor)
|
|
18
|
Fuel injector
|
|
19
|
VBC solenoid valve
|
|
20
|
Glow plug relay
|
|
21
|
Fuel pump with fuel metering valve
|
|
22
|
PCM control relay
|
|
23
|
IAT sensor No.2
|
|
24
|
Intake throttle valve
|
|
25
|
Air bypass valve (High power-Euro 4)
|
|
26
|
Catalyst exhaust gas temperature sensor (High power-Euro 4)
|
|
27
|
Diesel particulate filter differential pressure sensor (High power-Euro 4)
|
|
28
|
High power-Euro 4
|
|
29
|
Standard power-Euro 4
|

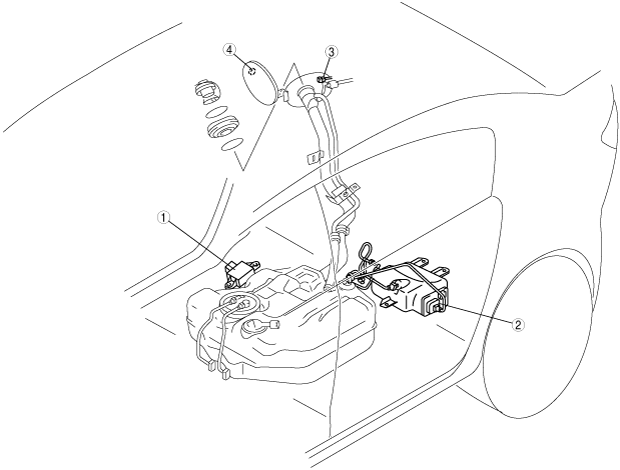

Fuel Tank Side (High Power-Euro 4)
am3zzn00000566
|
|
1
|
Fuel additive control module
|
|
2
|
Fuel additive pump unit (built in fuel additive level sensor)
|
|
3
|
Fuel-filler switch
|
|
4
|
Fuel-filler lid magnet
|
