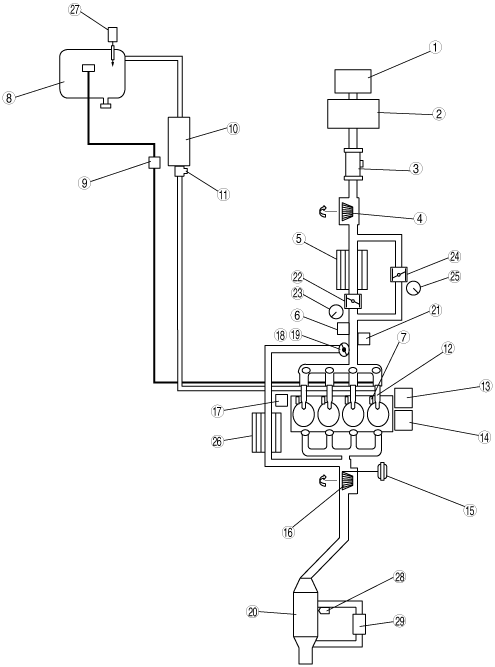

ENGINE CONTROL SYSTEM DIAGRAM[MZ-CD 1.6 (Y6)]
id0140b2100300
am3zzn00000567
|
|
1
|
Resonance chamber
|
|
2
|
Air cleaner
|
|
3
|
MAF/IAT sensor
|
|
4
|
Turbocharger (compressor)
|
|
5
|
Charge air cooler
|
|
6
|
MAP sensor
|
|
7
|
Glow plug
|
|
8
|
Fuel tank
|
|
9
|
Fuel temperature sensor
|
|
10
|
Fuel pump
|
|
11
|
Fuel metering valve
|
|
12
|
Fuel injector
|
|
13
|
CMP sensor
|
|
14
|
CKP sensor
|
|
15
|
VBC valve actuator
|
|
16
|
Turbocharger (Turbine)
|
|
17
|
ECT sensor
|
|
18
|
EGR valve
|
|
19
|
EGR valve position sensor
|
|
20
|
Oxidation catalytic converter
|
|
21
|
IAT sensor No.2
|
|
22
|
Intake throttle valve actuator
|
|
23
|
Intake throttle valve position sensor
|
|
24
|
Air bypass valve actuator (High power-Euro 4)
|
|
25
|
Air bypass valve position sensor (High power-Euro 4)
|
|
26
|
EGR water cooler
|
|
27
|
Fuel additive pump unit (High power-Euro 4)
|
|
28
|
Catalyst exhaust gas temperature sensor (High power-Euro 4)
|
|
29
|
Diesel particulate filter differential pressure sensor (High power-Euro 4)
|
