CAMSHAFT POSITION (CMP) SENSOR CONSTRUCTION/OPERATION[MZ-CD 1.6 (Y6)]

id0140b2105000

• Installed on the engine head.

• A CMP sensor with a hall element has been adopted, and it consists of an integrated circuit and magnet.

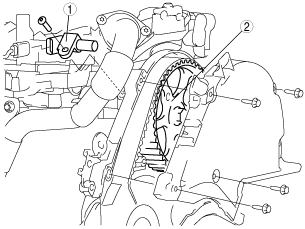

b3e0140t307

1

CMP sensor

2

Camshaft pulley
