INTAKE AIR TEMPERATURE (IAT) SENSOR CONSTRUCTION/OPERATION[MZ-CD 1.6 (Y6)]

id0140b2173600

b3e0140t604

1

MAF/IAT sensor

• Built into the MAF sensor.

• The IAT sensor is a thermistor type, the resistance changes according to the intake air temperature.

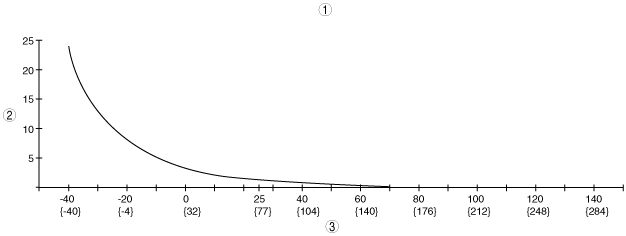

b3e0140t310

1

IAT sensor characteristic

2

Resistance (ohm)

3

IAT (°C {°F})

• The resistance decreases if the intake air temperature increases and conversely increases if the intake air temperature decreases.
