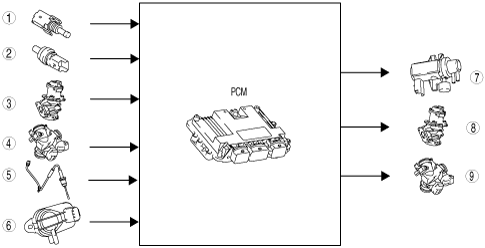

DIESEL PARTICULATE FILTER REGENERATION PROCESS BLOCK DIAGRAM[MZ-CD 1.6 (Y6)]

id0140b2179100

High Power-Euro 4

am3zzn00000634

1

Fuel temperature sensor

2

ECT sensor

3

EGR valve (EGR valve position sensor)

4

Air bypass valve position sensor, Intake throttle valve position sensor and IAT sensor No.2

5

Catalyst exhaust gas temperature sensor

6

Diesel particulate filter differential pressure sensor

7

VBC solenoid valve

8

EGR valve (EGR valve servo motor)

9

Air bypass valve actuator and intake throttle valve actuator

1	Fuel temperature sensor
2	ECT sensor
3	EGR valve (EGR valve position sensor)
4	Air bypass valve position sensor, Intake throttle valve position sensor and IAT sensor No.2
5	Catalyst exhaust gas temperature sensor
6	Diesel particulate filter differential pressure sensor
7	VBC solenoid valve
8	EGR valve (EGR valve servo motor)
9	Air bypass valve actuator and intake throttle valve actuator
