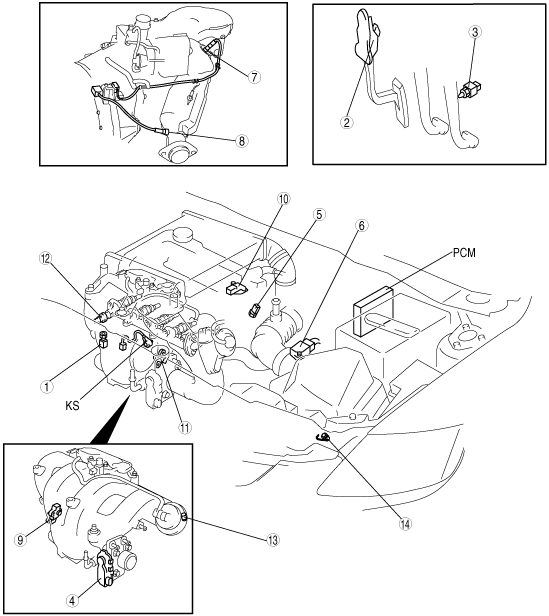

ENGINE CONTROL SYSTEM STRUCTURAL VIEW [L3 Turbo]
id0140b6100200
am3zzn00001206
|
|
1
|
PSP switch
|
|
2
|
APP sensor
|
|
3
|
CPP sensor
|
|
4
|
TP sensor
|
|
5
|
ECT sensor
|
|
6
|
MAF/IAT sensor
|
|
7
|
A/F sensor
|
|
8
|
HO2S
|
|
9
|
MAP/boost air temperature sensor
|
|
10
|
CMP sensor
|
|
11
|
CKP sensor
|
|
12
|
Fuel pressure sensor
|
|
13
|
Variable swirl shutter valve switch
|
|
14
|
Neutral switch
|
