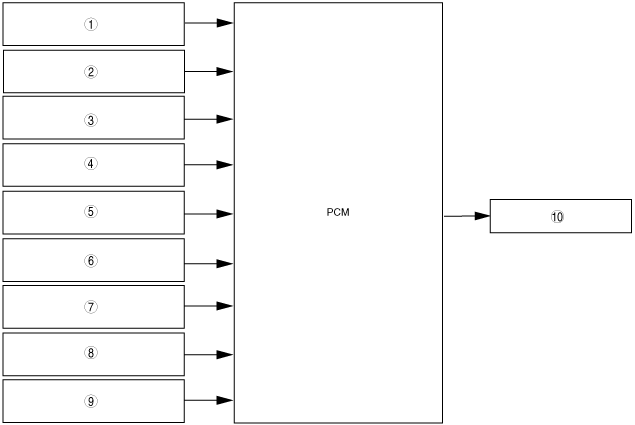

WASTEGATE CONTROL BLOCK DIAGRAM[L3 Turbo]
id0140b6101400
am3zzn00001230
|
|
1
|
MAP sensor
|
|
2
|
IAT sensor
|
|
3
|
MAF sensor
|
|
4
|
TP sensor No.1, No.2
|
|
5
|
CKP sensor
|
|
6
|
BARO sensor
|
|
7
|
CPP switch
|
|
8
|
Neutral switch
|
|
9
|
Battery
|
|
10
|
Wastegate control solenoid valve
|
