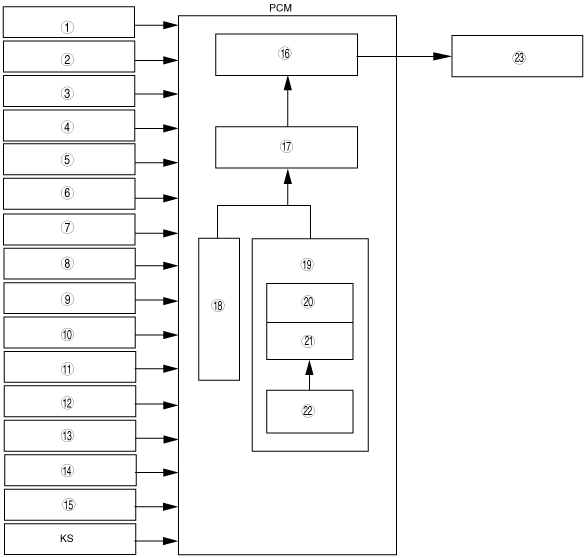

ELECTRONIC SPARK ADVANCE (ESA) BLOCK DIAGRAM[L3 Turbo]
id0140b6103000
am3zzn00001225
|
|
1
|
IAT sensor
|
|
2
|
MAF sensor
|
|
3
|
TP sensor No.1, No.2
|
|
4
|
APP sensor No.1, No.2
|
|
5
|
CMP sensor
|
|
6
|
CKP sensor
|
|
7
|
ECT sensor
|
|
8
|
Brake switch
|
|
9
|
Battery
|
|
10
|
Vehicle speed signal
|
|
11
|
Instrument cluster (CAN signal)
|
|
12
|
Ignition switch
|
|
13
|
Boost air temperature sensor
|
|
14
|
CPP switch
|
|
15
|
Neutral switch
|
|
16
|
Igniter operation time
|
|
17
|
Ignition timing
|
|
18
|
Fixed ignition
|
|
19
|
Cycle estimated ignition
|
|
20
|
Idle spark advance
|
|
21
|
Basic spark advance
|
|
22
|
Corrections
|
|
23
|
Ignition coil
|
