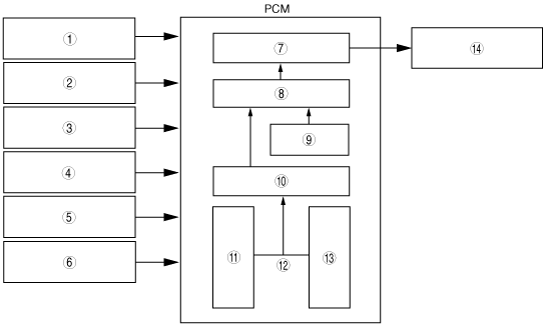

GENERATOR CONTROL BLOCK DIAGRAM[L3 Turbo]
id0140b6172400
am3zzn00001441
|
|
1
|
IAT sensor
|
|
2
|
ECT sensor
|
|
3
|
CKP sensor
|
|
4
|
Vehicle speed signal (CAN)
|
|
5
|
Generator (terminal P: stator coil)
|
|
6
|
Battery voltage
|
|
7
|
Field coil excitation time
|
|
8
|
Target excitation current
|
|
9
|
Generator rotation speed
|
|
10
|
Target generated current
|
|
11
|
Target battery voltage (regulating voltage)
|
|
12
|
Deviation
|
|
13
|
Current battery voltage
|
|
14
|
Generator (terminal D: Field coil)
|
