MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR CONSTRUCTION/OPERATION[L3 Turbo]

id0140b6173100

•  The MAP sensor is built into the boost air temperature sensor.
am3zzn00001245

1
MAP/boost air temperature sensor

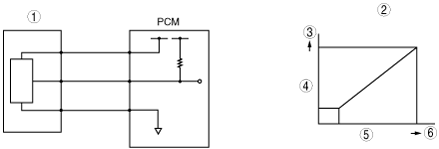

•  When pressure is applied to the piezoelectric element in the sensor, an electric potential difference occurs. Output voltage increases as the intake air pressure increases.
am3zzn00001246

1
MAP sensor
2
MAP sensor characteristic
3
High
4
Output voltage
5
Intake air pressure
6
High
