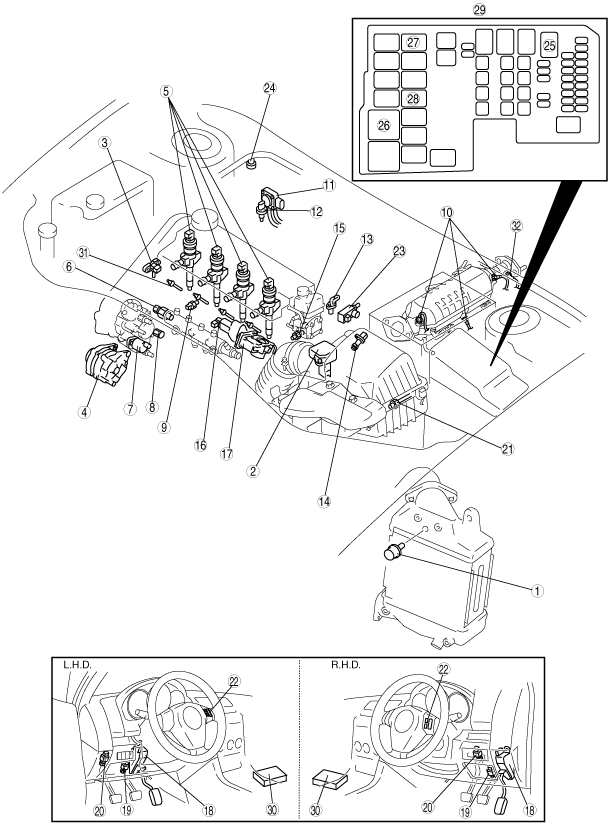

ENGINE CONTROL SYSTEM STRUCTURAL VIEW [MZR-CD (RF Turbo)]
id0140f1100200
am3zzn00001736
|
|
1
|
IAT No.2 sensor
|
|
2
|
MAF/IAT sensor
|
|
3
|
Boost sensor
|
|
4
|
Generator
|
|
5
|
Fuel injector
|
|
6
|
Fuel pressure sensor
|
|
7
|
Suction control valve
|
|
8
|
Fuel temperature sensor
|
|
9
|
ECT sensor
|
|
10
|
Exhaust gas temperature sensor
|
|
11
|
Exhaust gas pressure sensor
|
|
12
|
Exhaust gas pressure correction temperature sensor
|
|
13
|
CMP sensor
|
|
14
|
CKP sensor
|
|
15
|
PSP switch
|
|
16
|
EGR valve position sensor
|
|
17
|
Intake shutter valve position sensor
|
|
18
|
APP sensor
|
|
19
|
Brake switch
|
|
20
|
Clutch switch
|
|
21
|
Neutral switch
|
|
22
|
Cruise control switch
|
|
23
|
VBC solenoid valve
|
|
24
|
Refrigerant pressure switch
|
|
25
|
PCM control relay (main relay)
|
|
26
|
Glow plug relay
|
|
27
|
Starter relay
|
|
28
|
A/C relay
|
|
29
|
Main fuse block
|
|
30
|
PCM (with built-in BARO sensor)
|
|
31
|
Glow plug
|
|
32
|
A/F sensor
|
