ENGINE COOLANT TEMPERATURE (ECT) SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]

id0140f1173400

• Installed to the side of the cylinder block.

• The thermistor type ECT sensor changes resistance according to the ECT.

• The resistance decreases if the ECT increases and, conversely, increases if the ECT decreases.

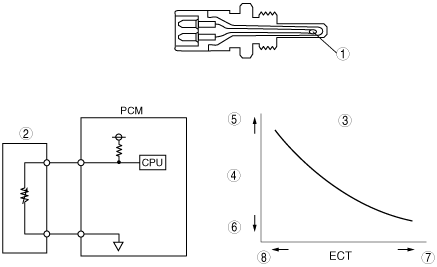

am3zzn00001567

1

Thermistor

2

ECT sensor

3

ECT sensor characteristic

4

Resistance

5

Large

6

Small

7

High

8

Low
