INTAKE AIR TEMPERATURE (IAT) SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]

id0140f1173600

• Installed to the air cleaner.

• Built into the mass airflow sensor.

am3zzn00001568

1

IAT sensor

2

MAF sensor

• The thermistor type IAT sensor changes resistance according to the IAT.

• The resistance decreases if the IAT increases and, conversely, increases if the IAT decreases.

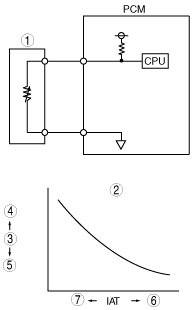

am3zzn00001569

1

IAT sensor

2

IAT sensor characteristic

3

Resistance

4

Large

5

Small

6

High

7

Low
