ACCELERATOR PEDAL POSITION (APP) SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]

id0140f1174800

• Consists of the APP sensor and accelerator pedal as a single unit.

am3zzn00001570

1

Accelerator pedal

2

APP sensor

• Hall element sensor has been adopted for the detecting element. With the adoption of a non-contact type sensor, durability is improved.

• The APP sensor has the main and sub sensors, and the accelerator opening angle is detected by both the main and sub systems.

• Even if one of the sensors is malfunctioning, the correct opening angle can be detected.

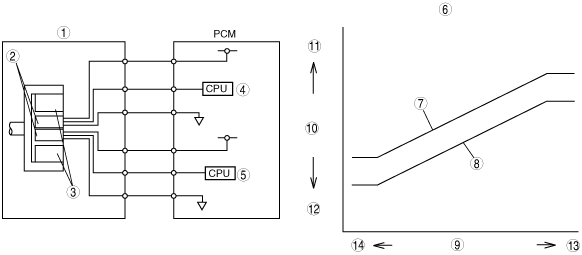

am3zzn00001571

1

APP sensor

2

Hall element

3

Magnet

4

Sub

5

Main

6

APP sensor output voltage characteristic

7

Main sensor

8

Sub sensor

9

Accelerator pedal depression amount

10

Output voltage

11

High

12

Low

13

Large

14

Small

1	APP sensor
2	Hall element
3	Magnet
4	Sub
5	Main
6	APP sensor output voltage characteristic
7	Main sensor
8	Sub sensor
9	Accelerator pedal depression amount
10	Output voltage
11	High
12	Low
13	Large
14	Small
