FUEL TEMPERATURE SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]

id0140f1181800

•  Installed to the supply pump.
•  The thermistor type fuel temperature sensor changes resistance according to the fuel temperature.
•  The resistance decreases if the fuel temperature increases and, conversely, increases if the fuel temperature decreases.

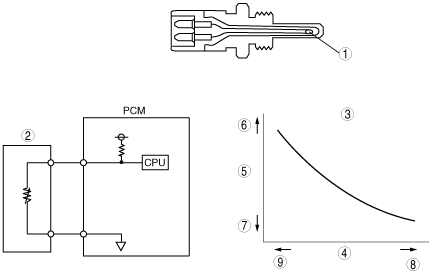

am3zzn00001590

1
Thermistor
2
Fuel temperature sensor
3
Fuel temperature sensor characteristic
4
Fuel temperature
5
Resistance
6
Large
7
Small
8
High
9
Low
