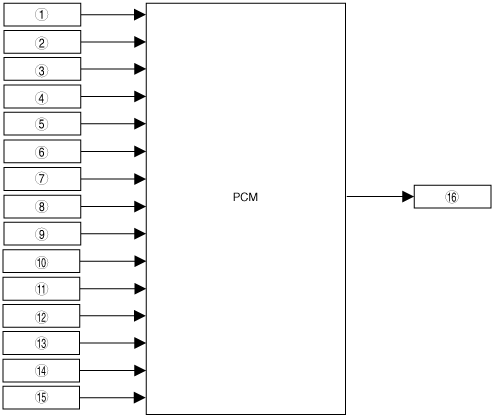

INTAKE SHUTTER VALVE CONTROL BLOCK DIAGRAM [MZR-CD (RF Turbo)]
id0140f1222300
am3zzn00001609
|
|
1
|
Battery
|
|
2
|
Starter (starter signal)
|
|
3
|
Clutch switch
|
|
4
|
Neutral switch
|
|
5
|
APP sensor
|
|
6
|
MAF/IAT sensor
|
|
7
|
ECT sensor
|
|
8
|
BARO sensor (integrated in PCM)
|
|
9
|
Boost sensor
|
|
10
|
CKP sensor
|
|
11
|
Vehicle speed signal
|
|
12
|
Exhaust gas temperature sensor (upper)
|
|
13
|
Exhaust gas temperature sensor (middle)
|
|
14
|
Exhaust gas temperature sensor (lower)
|
|
15
|
Intake shutter valve position sensor
|
|
16
|
Intake shutter valve
|
